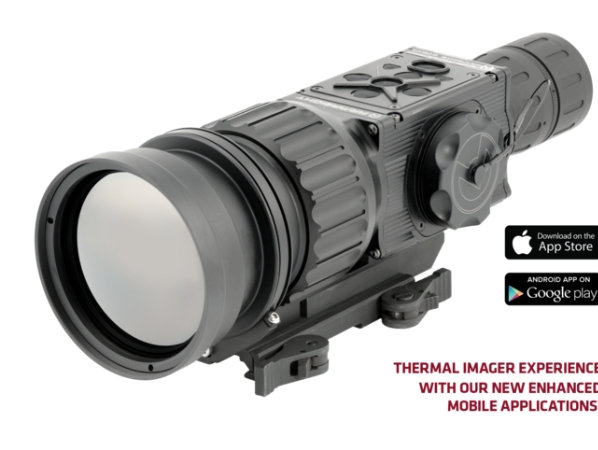

The Apollo Clip-on Thermal Imaging Devices Mounts in front of the day scope. The Apollo day/night thermal clip-on product displaying the best and latest in advancements developed by FLIR in the field of uncooled thermal imaging technology for the dismounted soldier, special law enforcement team member, and professional hunter. The Apollo Pro epitomizes 20/50-design gold standard, which is defined from product inception as being capable of withstanding 20 meters immersion for 2 hours, and engineered for routine use with 0.50 BMG weapon shock and recoil.

Based around common core electronics, signal processing, and infinity focused large-format collimating eyepiece, the Apollo Pro Series Day/ Night Clip-on Thermal Imaging Device is available in a variety of options and price points that cater to every application – military and commercial. The Apollo Pro is a solid state, uncooled, long-wave infrared, 1X (unity magnification) Clip-on Thermal Imaging Device for day and night engagements. It mounts directly in front of the variable magnification sniper day sight without the need to remove the day sight from the weapon. Collateral applications of the Apollo Pro Thermal Imaging Device include functionality as a unity magnification (1x) stand-alone weapon sight and handheld uncooled thermal monocular.

Special User-Adjustable Imaging Tools

• Active Contrast Enhancement (ACE): A digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
• Second Generation Digital Detail Enhancement (DDE): A “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
• Smart Scene Optimization (SSO): A fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
• Information-Based Histogram Equalization (IBHEQ): A “Sky/Sea” enhancement – information based environment dependent algorithm that automatically adjusts camera gain and excludes pixels determined to not contain critical information, specifically helpful in scenes with lots of sky or water.
• Automatic Gain Control (AGC): A “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
• User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC): There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Apollo models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
• Silent Shutterless NUC ™ (SSN): In addition to user controlled manual NUC/FFC all Apollo models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

• 24/7 Operation in presence of environmental obscurants (smoke, dust, haze, fog)
• Superior engineering and design from inception to Armasight’s 20/50 standard
• Rugged MIL-STD-810 compliant performance
• Operates on CR123A or AA batteries
• Reliable quick-release locking weapon mount
• Objective Germanium Lens
• TAU-2 17μm Pitch Thermal Sensor
• SVGA 800x600 OLED Display
• Digital Compass
• Digital Inclinometer
• Battery Status Indicator
• Multiple User Selectable Ballistic and Quick Acquisition Reticles (except in 9Hz version)
• Selectable Reticle Color
• Selectable Palettes: White Hot/Black Hot/Sepia/OEM Custom/Other Color Variants
• Imaging Filter Algorithms:
  • Active Contrast Enhancement™ (ACE)
  • Second Generation Digital Detail Enhancement™ (DDE)
  • Smart Scene Optimization™ (SSO)
  • Information Based Histogram Equalization™ (IBHEQ)
  • Automatic Gain Control (AGC)
• Wireless 5-button Remote
• Tracking Digital e-Zoom: 2x / 4x / 8x (640x512 only)
• Still Picture and Video Recording Capability (Mounted DVR Option)
• Made in the USA

Included Accessories:

• Packing Box
• Soft carrying case
• One Lithium Battery CR123A
• 16650 Rechargeable Battery
• Battery Adapter for 16650 Battery
• Charger for 16650 Rechargeable Battery
• QRM – Quick Release Weapon Mount #26 / #142
• Lens Tissue
• Instruction Manual with Warranty Card
• Video Cable
• AWReC (Advanced Wireless Remote Control 5-buttons)
• Picatinny adaptor for AWReC (Advanced Wireless Remote Control)
• Light-Suppressor 1
• Light-Suppressor 2
• Light-Suppressor 3
• Light Suppressor for Day Scope

OPTIONAL ACCESSORIES:

• Dovetail to Weaver Transfer Piece #21
• Scope Mounting System 1 #40
• Scope Mounting System 2 #41
• Scope Mounting System 3 #42
• Scope Mounting System 4 #43
• Scope Mounting System 6 #44
• Extended Rail Adapter #85 – Dovetail Weaver Picatinny Rail Adaptor Extends 7.5
• DVR Digital Recorder
• HD DVR Digital Video Recorder
• Extended Battery Pack
• AMRF2200- Advanced Modular Range Finder for High Performance Digital and Thermal Devices
• Hard Shipping / Storage Case #102
